Name: Lite Series - UR32L-L04EU
Brand: Milesight IoT
Price: 138 USD
Availability: InStock

About this product

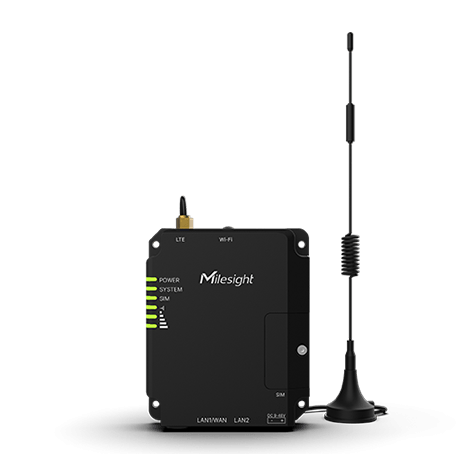

The Lite Industrial Cellular Router, UR32L, is a rugged and secure 4G router designed for industrial use. It features a global 4G LTE network, open VPN tunnel with various protocols, and an ultra-high protection system. It also offers stable cellular and Ethernet internet access and remote management capabilities through MilesightVPN and DeviceHub.

Key points:

UR32L is an industrial-grade router with a rugged and pocket-sized design.
It supports global 4G LTE networks and provides reliable download and upload speeds.
The router offers a compact design, making it suitable for space-limited environments.
It features a range of security mechanisms, including centralized authentication and VPN tunnels.
UR32L can be remotely managed through MilesightVPN and DeviceHub, allowing for easy deployment and configuration across multiple locations.

Specifications

Hardware System
CPU	ARM Cortex-A7,528 MHz
Memory	128 MB DDR3 RAM and 128MB Flash
Cellular Interface
Antenna Connector	1 × 50 Ω SMA Connectors (Center PIN: SMA Female)
SIM Slots	1（Mini SIM-2FF）
Ethernet Interface
Numbers	2 × 10/100 Mbps
Property	1 × WAN + 1 × LAN or 2 × LAN
Mode	Full or half duplex (Auto-Sensing)
PoE	2 × 802.3 af/at PoE PSE on LAN Ports (Optional)
Others
Reset Button	1 × RESET
LED Indicators	1 × POWER, 1 × SYSTEM, 1 × SIM, 3 × Signal strength
Built-in	Watchdog, Timer
Software
Network Protocols	IPv4/IPv6, PPP, PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, RIPv1/v2, OSPF, DDNS, VRRP, HTTP, HTTPS, DNS, ARP, QOS, SNTP, Telnet, VLAN, SSH, etc.
VPN	DMVPN, IPsec, OpenVPN, PPTP, L2TP, GRE
Security	Access Control, DMZ, Port Mapping, MAC Binding, SPI Firewalls, DoS&DDoS Protection, Filtering(IP&Domain), IP Passthrough
Management	Web, CLI, SMS, On-demand dial up, SNMP v1/v2/v3, DeviceHub
AAA	Radius, Tacacs+, LDAP, Local Authentication
Multilevel Authority	Multiple Levels of User Authority
Reliability	VRRP, WAN Failover
Power Supply and Consumption
Power Connector	2-pin 5.08 mm Terminal Block
Input Voltage	9-48 VDC, with Surge-Protection and Reverse Polarity Protection
Power Consumption	Typical 1.8 W, Max 2.2 W (In Non-PoE mode)
Physical Characteristics
Ingress Protection	IP30
Housing	Metal
Dimension	108 x 90 x 26 mm (4.25 x 3.54 x 1.02 in)
Installation	Desktop, Wall or DIN Rail Mounting
Environmental
Operating Temperature	-40°C to +70°C (-40℉ to +158℉) Reduced Cellular Performance Above 60°C
Storage Temperature	-40°C to +85°C (-40℉ to +185℉)
Ethernet Isolation	1.5 kV RMS
Relative Humidity	0% to 95% (non-condensing) at 25°C/77℉
Approvals
Regulatory	CE, FCC, RCM
Environmental	RoHS
EMC	EN 55032, EN 55035
EMS	IEC 61000-4-2 Level 3 IEC 61000-4-3 Level 2 IEC 61000-4-4 Level 2 IEC 61000-4-5 Level 2 IEC 61000-4-6 Level 3 IEC 61000-4-8 Level 1 IEC 61000-4-11 Level 3
Radio Frequency	EN 301 489-1/17/19/52, EN 301 511, EN 301 908-1/2/13, EN 303 413
Safety	EN62368-1
Installation	Desktop, Wall or DIN Rail Mounting
Environmental
Operating Temperature	-40°C to +70°C (-40℉ to +158℉) Reduced Cellular Performance Above 60°C
Storage Temperature	-40°C to +85°C (-40℉ to +185℉)
Ethernet Isolation	1.5 kV RMS
Relative Humidity	0% to 95% (non-condensing) at 25°C/77℉
Approvals
Regulatory	CE, FCC, RCM, NBTC, SPDDI
Carrier	PTCRB, AT&T
Environmental	RoHS
EMC	EN 55032, EN 55035
EMS	IEC 61000-4-2 Level 3 IEC 61000-4-3 Level 2 IEC 61000-4-4 Level 2 IEC 61000-4-5 Level 2 IEC 61000-4-6 Level 3 IEC 61000-4-8 Level 1 IEC 61000-4-11 Level 3
Radio Frequency	EN 301 489-1/17/19/52, EN 301 511, EN 301 908-1/2/13, EN 303 413, EN300 328
Safety	EN62368-1

Specifications

Connectivity
Wireless Type	Bluetooth 5.0
Network Support	3G & 4G Supported
Ethernet Ports	2 * 10/100Mbps
LAN Ports	2 * LAN or 1 * WAN + 1 * LAN
PoE Support	Optional: PoE PSE
Additional Specifications
GPS	✕
PoE PSE	✕
Wi-Fi	✕
