Name: IoT E-Ink Display - DS3604-915M
Price: 136 USD
Availability: InStock

About this product

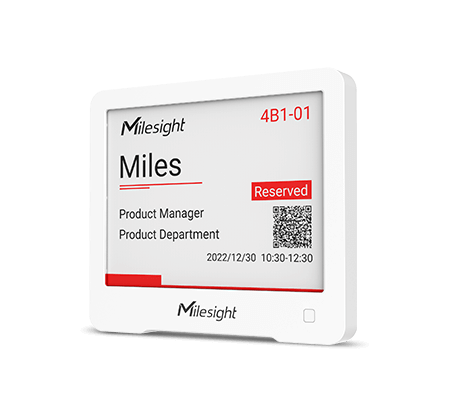

The DS3604 is a device with a high-definition e-ink display that is useful for flexible content presentation in various business settings such as retail, warehouse and logistics management, and smart production lines.

Key points:

The DS3604 is equipped with a high-definition e-ink display.
It is suitable for flexible content presentation in different business environments.
It can be used in retail, warehouse and logistics management, and smart production lines.

Specifications

Wireless Transmission
Technology	LoRaWAN®
Frequency Band	CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4
Tx Power	16 dBm (868 MHz)/22 dBm (915 MHz)/19 dBm (470 MHz)
Sensitivity	-137dBm
Mode	OTAA/ABP Class A/Class B ( Default OTAA Class B)
Display
E-ink Screen	4.2-inch Black & White & Red E-Ink Screen
Resolution	400 x 300 Pixels
DPI	119
Viewing Angle	180°
Refresh Rate	16s (10 - 40°C)
Display Character	Latin alphabet, English alphabet, Cyrillic alphabet, Greek alphabet, Chinese character, Japanese character, and Hangul
Display Languages	Support Displaying up to 150 Languages Including English, Chinese (Simplified & Traditional) , Spanish, French, Japanese, Portuguese, etc. (Exclude Hebrew, Arabic & Thai)
Operation
Button	1 x Reset Button (Internal) + 1 x Screen Button
Buzzer	1 x Buzzer
Configuration	NFC Configuration via Mobile App
Physical Characteristics
Power Supply	3 × 590mAh CR2450 Lithium Batteries
Battery Life	Around 5 Years (Class A Mode + 1 Screen Refresh per Day) Around 1 Year (Class B Mode + 12 Screen Refreshes per Day)
Operating Temperature	0°C to +40°C (0℉ to +104℉)
Operating Humidity	0% to 95% (non-condensing) below 25°C/77℉
Ingress Protection	IP30
Color & Material	White, ABS + PC
Dimension	99 × 87 × 10.5 mm (3.90 × 3.43 × 0.41 in)
Installation	3M Tape Mounting, Wall Screw Mounting

Specifications

Connectivity
Battery Type	3 * 590mAh CR2450 Lithium
Battery Life	Around 5 Years (Class A Mode + 1 Screen Refresh per Day) Around 1 Year (Class B Mode + 12 Screen Refreshes per Day)
Languages Supported	Up to 150 languages
Integration/API	API provided for Management Platform Integration or Development
Display Template Customization	Supported
NFC Enabled	Yes
IP Rating	IP30
Communication	LoRaWAN
Display
E-ink Screen:	4.2-inch Black & White & Red E-Ink Screen
Resolution:	400 x 300 Pixels
DPI:	119
Viewing Angle:	180°
Refresh Rate:	16s (10°C ~ 40°C)
