UC300-915M - UC300 Series
The DS3604 is a device with a high-definition e-ink display that is useful for flexible content presentation in various business settings such as retail, warehouse and logistics management, and smart production lines.
Condition: New
Authentic product
About this product

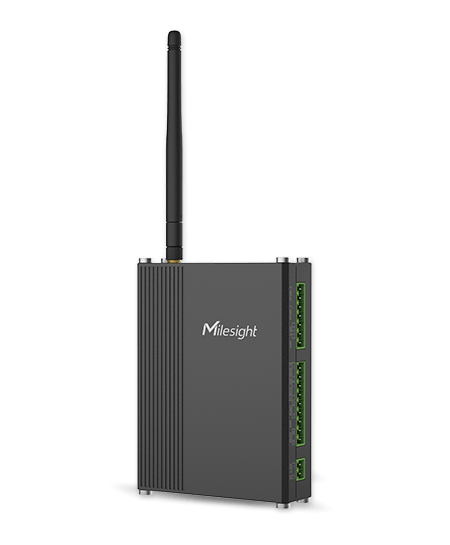

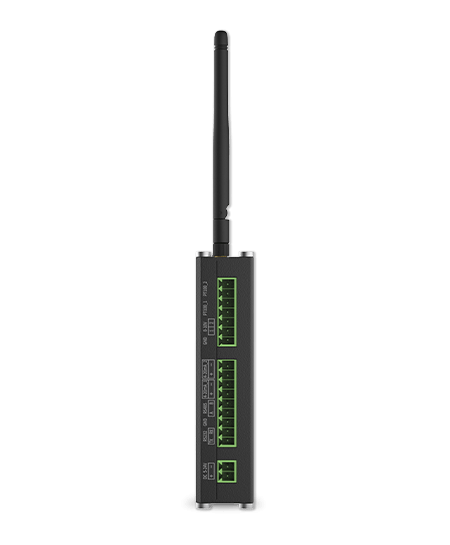

The Milesight UC300 IoT Controller is a versatile solution for remote monitoring and control in various applications. It offers rich industrial interfaces, including analog inputs, digital inputs, digital outputs, RS232, and RS485.
The UC300 supports flexible cloud integration and can communicate with Milesight LoRaWAN® nodes without a LoRaWAN® gateway within one second.
It features an intelligent trigger system that allows users to set custom trigger conditions and actions for intelligent tasks like timing data collection.
The UC300 can operate autonomously even when the network is unavailable, and it supports global LoRaWAN® frequency plans and 4G LTE backhaul connectivity.
Key Points:
- UC300 offers rich industrial interfaces for monitoring and controlling field sensors and devices.
- It supports flexible cloud integration and can communicate with Milesight LoRaWAN® nodes without a gateway.
- The intelligent trigger system allows for custom trigger conditions and actions.
- The UC300 can operate autonomously and supports global LoRaWAN® frequency plans and 4G LTE connectivity.
Specifications
| Wireless Transmission | |
|---|---|
| Technology | LoRaWAN® or 2G/3G/4G (Hardware Optional) |
| LoRaWAN® | CN470/RU864/IN865/EU868/US915/AU915/KR920/AS923-1&2&3&4 OTAA/ABP Class C |
| Cellular | 1 (Micro SIM-3FF) TCP/UDP/MQTT/AWS/ONENet/Milesight IoT Cloud/SMS Application Mode |
| Data Interfaces | |
| Interface Type | 3.5 mm Terminal Block |
| GPIO | 4 × DI + 2 × DO |
| Serial Port | 1 × RS232 + 1 × RS485 |
| Analog Input | 2 × 4~20 mA, 2 × 0~10 V, 2 × PT100 RTD Input |
| Others | |
| Configuration Port | 1 × Type-C |
| LED Indicators | 1 × System, 1 × ACT |
| Built-in | Watchdog, Timer |
| Physical Characteristics | |
| Operating Temperature | -20°C ~ 60°C (-4℉ to +140℉) |
| Dimensions | 93 × 70 × 22 mm (3.66 × 2.76 × 0.87 in) |
| Installation | Desktop, Wall Mounting, DIN Rail Mounting |
Specifications
Connectivity | |
|---|---|
| RS232 | 1 |
| RS485 | 1 |
| Digital Input | 4 |
| Digital Output | 2 |
| Analog Input | 2 * 4 ~ 20 mA 2 * 0 ~ 10 V 2 * PT100 RTD |
| Communication | LoRaWAN |
