Name: TS101-915M (2 Pieces) - Insertion Temperature Sensor
Price: 192 USD
Availability: InStock

About this product

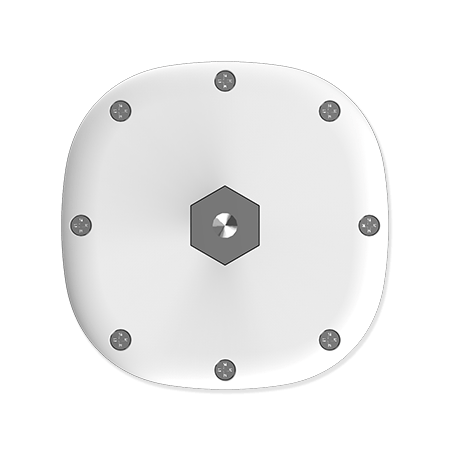

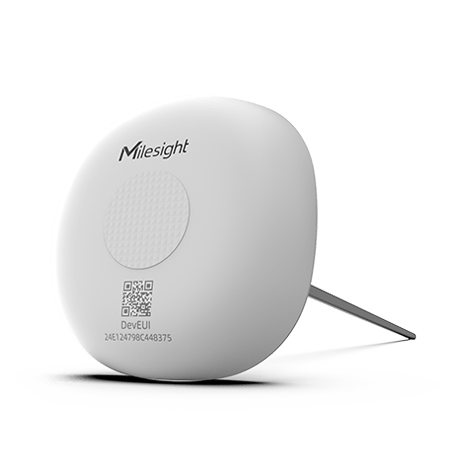

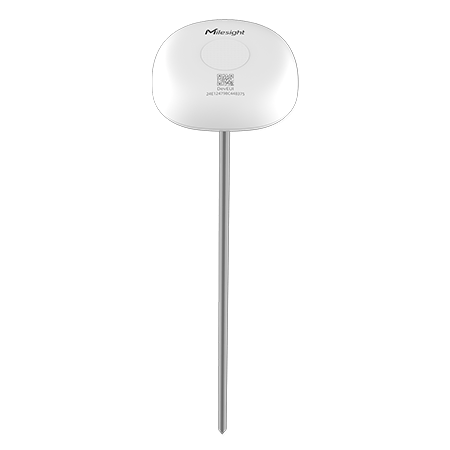

The Milesight TS101 is an all-in-one insertion temperature sensor with a wide temperature measuring range and high precision.

Key points:

The TS101 has a food-grade enclosure probe, making it safe and hygienic for use with food.
It is exceptionally durable with an IP67 waterproof rating and phosphine corrosion resistance.
The device has a long-lasting battery life of 10 years and supports data retrieval and retransmission for data integrity.
It is compatible with LoRaWAN technology for long-range data transmission and can be managed through the Milesight IoT Cloud platform.
The TS101 is suitable for various applications such as tobacco stack temperature monitoring, hay temperature monitoring, and compost temperature monitoring.

Wireless Transmission
Protocol	LoRaWAN®
Frequency	CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4
Tx Power	16 dBm (868 MHz)/20 dBm (915 MHz)/19 dBm (470 MHz)
Sensitivity	-137 dBm @300bps
Mode	OTAA/ABP Class A
Measurement
Detecting Range	-30°C ~ +70°C
Accuracy	± 0.5°C
Resolution	0.1°C
Operation
Power On & Off	NFC, Power Button (Internal)
Configuration	NFC Configuration via Mobile App
Advanced Feature	Data Storage, Data Retransmission, Data Retrievability, Abrupt Temperature Change Alarm
Physical Characteristics
Power Supply	1 × 4000 mAh ER18505 Li-SOCl Replaceable Battery
Battery Life*	10 Years (1 Hour Report Interval, 25°C)
Operating Temperature	-30°C ~ +70°C
Relative Humidity	0 ~ 95% (Non-condensing)
Material & Color	Transceiver: ABS+PC(Food-Grade, Phosphine Corrosion resistant), White Sensor Probe: 316 Stainless Steel (Food-Grade, Phosphine Corrosion Resistant) , Silver Grey
Ingress Protection	IP67
Impact Protection	IK10 (Transceiver)
Dimension	Transceiver: Ф 92 × 92 × 26 mm (Ф 3.62 × 3.62 × 1.02 in) Sensor Probe: Ф 7 × 400 mm (Ф 0.28 × 15.75 in)
Installation	Insert Installation

Tested under laboratory conditions and for guideline purposes only.
For detailed information, visit our website at https://www.milesight.com.

Design
Battery	1 * 4000mAh ER18505 Li-SOCl2 Replaceable Battery
Battery Life	10 Years (1 Hour Report Interval, 25°C)
Material	Food-grade Stainless-steel Probe and Shell Material
Data Storage	1200 sets
NFC	Enabled
IP Rating	IP67
Impact Rating	IK10 (Transceiver)
Advanced Features	Data Storage Data Retransmission Data Retrievability Abrupt Temperature Change Alarm
Communication	LoRaWAN
Measurement
Measuring Range:	-30°C ~ 70°C
Accuracy:	±0.5°C
Resolution:	0.1°C
