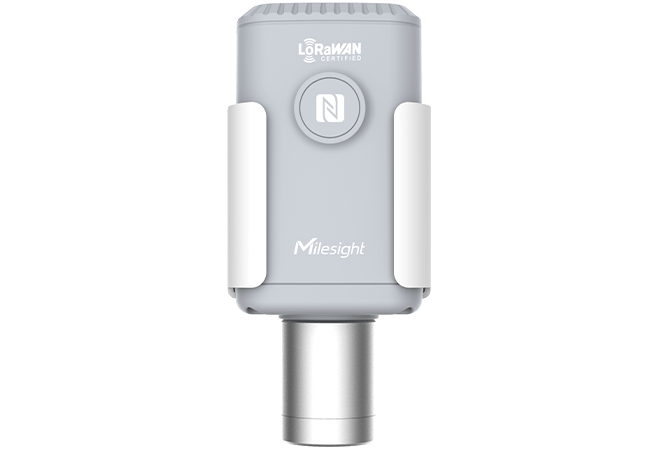

Name: EM500-CO2-915M - CO2 Sensor (4 in 1)
Price: 276 USD
Availability: InStock

About this product

The EM500-CO2 is a 4-in-1 CO2 sensor designed for measuring CO2 concentration in harsh environments. It also supports measurement of temperature, humidity, and barometric pressure. It can be used in various applications such as greenhouse monitoring, building ventilation, and fruit and vegetable storage. The sensor can be easily installed in enclosed areas or outdoors. Additionally, it is compatible with Milesight IoT Cloud for monitoring data and has a long battery life of up to 10 years.

Key points:

EM500-CO2 is a 4-in-1 CO2 sensor for measuring CO2 concentration.
It also measures temperature, humidity, and barometric pressure.
Suitable for greenhouse monitoring, building ventilation, and storage applications.
Easy installation in enclosed areas or outdoors.
Compatible with Milesight IoT Cloud for data monitoring.
Long battery life of up to 10 years.

Specifications

LoRaWAN	Frequency	CN470/RU864/IN865/EU868/US915/AU915/KR920/AS923
Tx Power	16dBm(868)/20dBm(915)/19dBm(470)
Sensitivity	-137dBm @300bps
Mode	OTAA/ABP Class A
Measurement (CO) (0 to 50°C)	Range	400 – 5000 ppm
Resolution	1 ppm
Accuracy	±30 ppm or ±3 % of reading
Physical Characteristics	Power Supply	19000 mAh Li-SOCl2
Operating Temperature	-30°C to +70°C
Ingress Protection	IP65
Dimension	156.1 × 71 × 69.5 mm

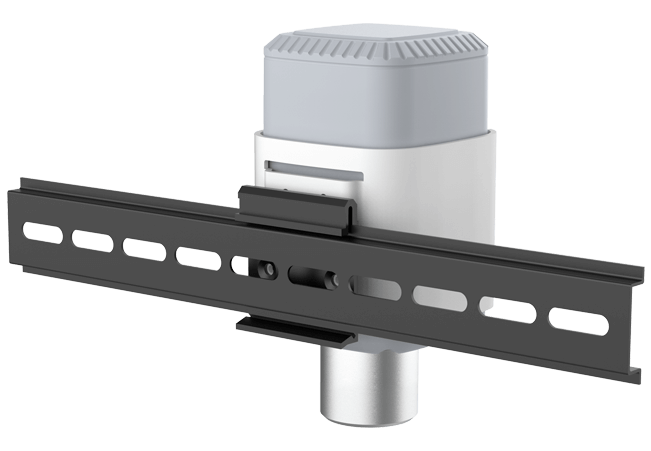

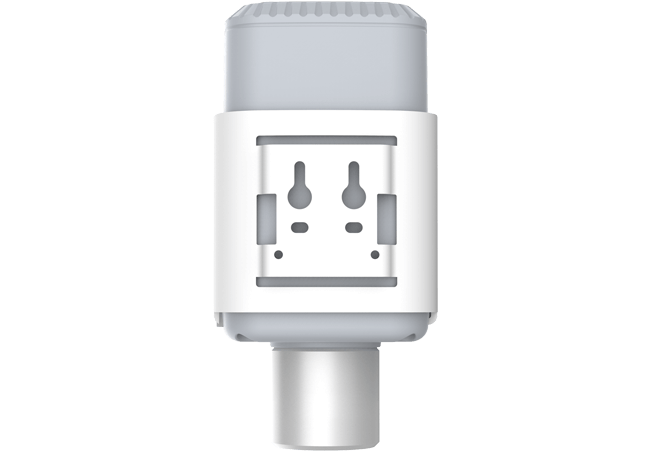

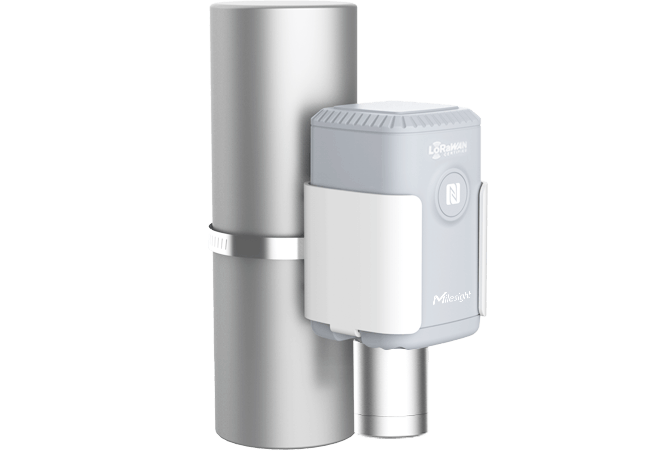

Mounting	DIN rail, wall, pole mounting

Specifications

Battery Type
Battery Capacity	19000mAh Li-SOCL2 Battery
Battery Life	10 Years (10 min Interval)
Resolution	1 ppm
NFC Enabled	Yes
Ingress Protection	Transceiver: IP67 Sensor: IP65
Communication	LoRaWAN
Measuring Range
CO2:	400 ~ 5000 ppm
Temperature:	-30°C ~ 70°C
Humidity:	0% ~ 100% RH
Barometric Pressure:	300 ~ 1100 hPa (-40°C ~ 85°C)
