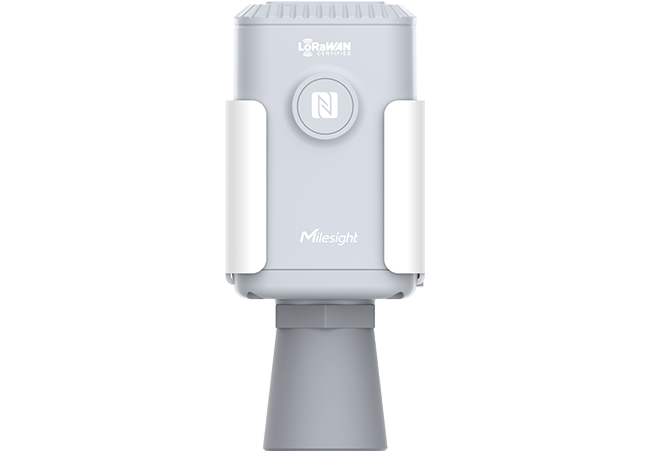

EM500-UDL-915M - Ultrasonic Distance/Level Sensor (PN: C050)
The EM500-UDL is an ultrasonic distance/level sensor that provides accurate measurements for various applications in harsh environments. It can measure distances from 0.3m to 10m and is suitable for measuring both benign and chemical mediums. It can be used for snow level monitoring and tank level monitoring. The sensor can be configured using NFC and works with Milesight IoT Cloud for data monitoring.
Key points:
- EM500-UDL is an ultrasonic distance/level sensor for harsh environments
- Measures distances from 0.3m to 10m and can measure small containers or openings
- Suitable for measuring benign and chemical mediums
- Can be used for snow level monitoring and tank level monitoring
- Works with Milesight IoT Cloud for data monitoring
- Can be configured using NFC
Specifications
| LoRaWAN | Frequency | CN470/RU864/IN865/EU868/US915/AU915/KR920/AS923 |
| Tx Power | 20dBm | |
| Sensitivity | -137dBm @300bps | |
| Mode | OTAA/ABP Class A | |
| Measurement | Range | EM500-UDL-W050: 0.3-5m EM500-UDL-W100: 0.5-10m (Customizable for snow level detection usage) |
| Resolution | 1 mm | |
| Accuracy | ±1% | |
| Physical Characteristics | Power Supply | 19000 mAh Li-SOCL2 |
| Operating Temperature | -30°C to +65°C | |
| Ingress Protection | IP66 (IP67 as required) | |
| Dimension | 156.1 × 71 × 69.5 mm | |
| Mounting | DIN rail, wall, pole mounting |
