WT301-915M - Smart Fan Coil Thermostat

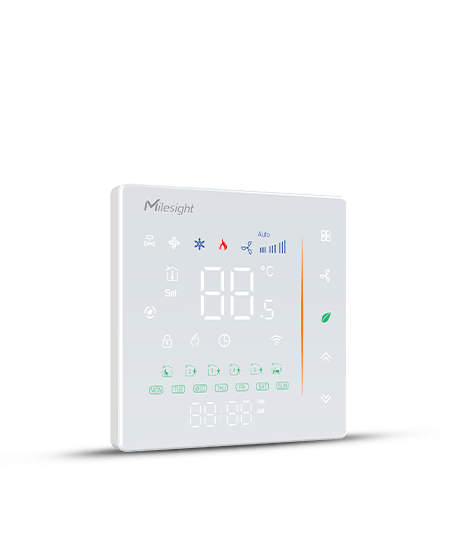

The Milesight Smart Fan Coil Thermostat WT30x is an advanced touch screen room thermostat that allows control of fan coil units (FCUs) in buildings. It offers features such as system mode, fan mode, and temperature setpoints. It can be used in various building applications.

Key Points:

  • Modulation control of FCUs can save over 50% fan energy and lead to more efficient chiller staging.
  • The WT30x thermostat supports wireless LoRaWAN® communication, providing easy deployment and higher security.
  • The thermostat has an elegant design, with a LED matrix light display and rotating based on accurate temperature sensing.
  • It offers strong connectivity through Milesight LoRaWAN® gateways and supports various communication protocols.
  • The thermostat has a weekly programmable mode and is compatible with standard LoRaWAN® gateways.

Spec

Design

Power Supply 95~240 VAC, 50~60HZ
Suitable for On / Off Relay Control
Support Three-speed Fan Coil Control
Energy-saving Mode with Keycard Application in Hotels
Power-off Storage Support
With Clock Display Function Support
External NTC / Temperature Sensor Enabling Intelligent Control and Safety-energy
Support Adjustment Target Temperature Error to Control Valve Status Support
Support Customized Temperature Settings for Both Weekday and Weekend (Saturday & Sunday) with Six Programmable Periods Maximizing Comfort and Economy
Ultra-wide-distance Wireless Transmission up to Line of Sight of 15 km Highly Adapt to Different Scenarios
Box Type 86mm Hidden Box
European 60mm Round Box
IP Rating IP20 Rated
Communication LoRaWAN

Measuring Range

Display Temperature: +5°C ~ +99°C
Ambient Temperature: 0°C ~ +45°C
Storage Temperature: -5°C ~ +45°C
Relative Humidity: 5 ~ 95% (Non-condensing)
Power Consumption: <1.5W
