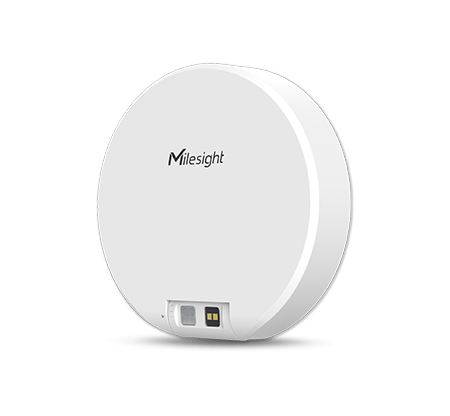

Bathroom Occupancy Sensor - VS330-915M
The VS330 is a smart occupancy detection device that combines PIR and ToF technologies to accurately monitor the occupancy status of cubicles. It achieves industry-leading accuracy of over 99.5% and ensures 100% anonymity. The device has a low power consumption and a sleek design, with a rotatable probe for flexibility. It is LoRaWAN compatible for data transmission and can be managed through the Milesight IoT Cloud platform.
Key Points:
- VS330 combines PIR and ToF technologies for accurate occupancy detection in cubicles
- Achieves industry-leading accuracy of over 99.5%
- Ensures 100% anonymity and GDPR compliance
- Low power consumption with a minimum of 4 years battery life
- Sleek design with a rotatable probe for flexibility
- LoRaWAN compatible for data transmission
- Can be managed through the Milesight IoT Cloud platform
Specifications
| Wireless Transmission | |
|---|---|
| Protocol | LoRaWANยฎ |
| Frequency | CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4 |
| Tx Power | 16 dBm (868 MHz)/19 dBm (470 MHz)/22 dBm (915 MHz) |
| Sensitivity | -137dBm |
| Mode | OTAA/ABP Class A |
| Sensors | |
| ToF | |
| ToF FoV | 27ยฐ |
| Detection Range | 0.040 ~ 3.500m |
| Accuracy | ยฑ 2cm |
| Resolution | 1mm |
| PIR | |
| Detection Area | 80ยฐ |
| Detection Distance | Maximum 2.5m |
| Others | |
| Sensor Adjustable Angle | 0ยฐ, 15ยฐ, 30ยฐ, 45ยฐ, 60ยฐ, 75ยฐ |
| Others | |
| LED | 1 ร Status/Test Indicator |
| Button | 1 ร Power/Reset Button |
| Configuration | Mobile App via NFC |
| Physical Characteristics | |
| Power Supply | 3 x 4000 mAh ER18505 Li-SOCl Replaceable Batteries |
| Battery Life | Around 3 Years |
| Operating Temperature | -20ยฐC ~ 60ยฐC |
| Relative Humidity | 0% - 95% (non-condensing) |
| Ingress Protection | IP30 |
| Dimension | ะค100 x 24 mm (ะค3.94 x 0.95 in) |
| Material & Color | PC+ABS (Flame Retardant), White |

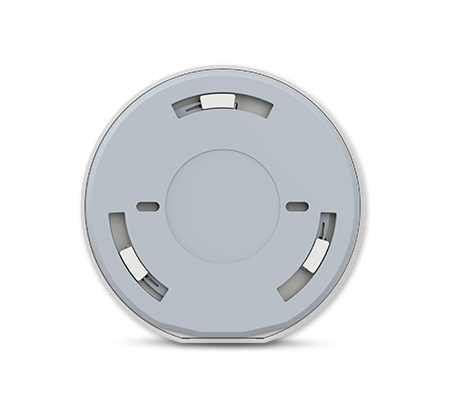

| Installation | Ceiling Mount or Wall Mount via Screws or 3M tapes |
