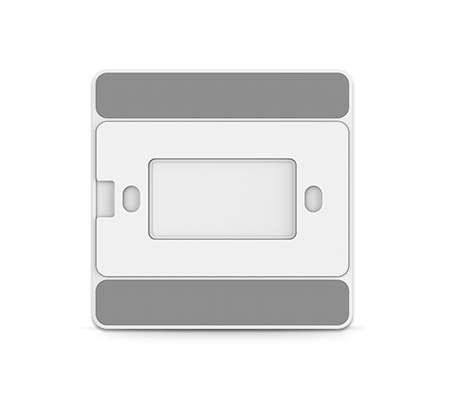

Name: Smart Scene Panel - WS156-915M
Price: 45 USD
Availability: InStock

About this product

The Smart Scene Panel WS156 & WS136 by Milesight allows for seamless control and customization of multiple scenes in different environments. It features one-to-many control, efficient D2D communication, and low power consumption. The panel supports LoRaWAN® and Milesight D2D protocols, has a long battery life, and offers cloud data management and NFC configuration.

Specifications

Wireless Transmission
Technology	LoRaWAN®, Milesight D2D
Frequency	CN470/RU864/IN865/EU868/US915/AU915/KR920/AS923
Tx Power	16 dBm (868 MHz)/22 dBm (915 MHz)/19 dBm (470 MHz)
Sensitivity	-137dBm
Mode	OTAA/ABP Class A
Interface
Display	WS156: 2.9-Inch Black & White E-Ink Screen, 128 × 296 Pixels WS136: Not Support
Scene Button	6 Buttons
Button Light	Blue
Others	1 × Reset Button (Internal) + 1 × LED Indicator
Software
Configuration	NFC
Advanced Features	Milesight D2D Controller, Screen Display Customization
Physical Characteristics
Power Supply	2 × 590 mAh CR2450 Lithium Coin Cell Batteries
Battery Life*	Over 3 years (1080 min interval + 20 presses per day)
Ingress Protection	IP30
Color & Material	White, PC + ABS (Flame-retardant)
Operating Temperature	-10°C to +50°C (E-Ink Screen: 0°C - 50°C)
Relative Humidity	≤ 90% (Non-condensing)
Dimensions	86 × 86 × 14 mm (3.39 × 3.39 × 0.55 in)
Installation	Desktop, 3M Tape Mounting, 86 Box Mounting

Specifications

Connectivity
Battery	2 * 590mAh CR2450 Lithium Coin Cell Batteries
Battery Life	Over 3 Years (1080 min Interval + 20 Presses per Day, 25°C)
User-defined E-ink Screen	Included
NFC Enabled	Yes
IP Rating	IP30
Advanced Features
Scenes Settable	Up to 6
Communication	LoRaWAN
Controller	Milesight D2D Controller
