UC502-915M (PN: EA) - UC500 Series
The UC50x Series is a multi-interface controller with rich industrial interfaces that can connect to and monitor multiple field sensors and devices simultaneously. It features an SDI-12 interface for environmental data acquisition and offers flexible power supply options. It comes in an IP67 rated enclosure for harsh environments and provides timely alerts and notifications. The UC50x Series also offers internal and external antenna versions for optimal signal strength and range. It supports data threshold reporting, has easy configuration via NFC, and ensures data integrity and reliability.
Key points:
- UC50x Series is a multi-interface controller with rich industrial interfaces
- It has an SDI-12 interface for environmental data acquisition
- Offers flexible power supply options
- Comes in an IP67 rated enclosure for harsh environments
- Provides timely alerts and notifications
- Offers internal and external antenna versions for optimal signal strength and range
- Supports data threshold reporting and easy configuration via NFC
- Ensures data integrity and reliability
Specifications
| Wireless Transmission | |
|---|---|
| Technology | LoRaWAN® |
| Frequency | CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4 |
| Tx Power | 16dBm (868 MHz)/20dBm (915 MHz)/19dBm (470 MHz) |
| Sensitivity | -137dBm @300bps |
| Work Mode | UC501: OTAA/ABP Class A, Class C UC502: OTAA/ABP Class A |
| Data Interfaces | |

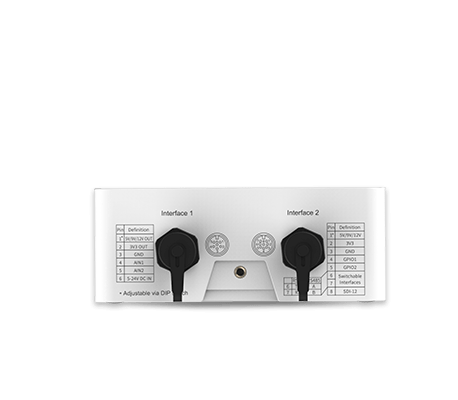

| Interface Type | M12 A-Coded Male |
| IO | |
| Ports | 2 × GPIO |
| Logical Level | Low: 0~0.9 V, High: 2.5~3.3 V |
| Maximum Current | 20 mA |
| Work Mode | Digital Input, Digital Output, Pulse Counter |
| Serial Port | |
| Ports | 1 × RS232 or RS485 (Switchable) |
| Baud Rate | 1200~115200 bps |
| Protocol | Transparent (RS232), Modbus RTU (RS485) |
| Analog Input | |
| Ports | 2 × Analog Input |
| Resolution | 12 bit |
| Input Range | 4~20 mA or 0~10 V (Switchable) |
| Power Output | |
| Ports | 2 × 3.3 V@Max 300mA, 2 × 5/9/12 V @Max 200 mA (Switchable) |
| Operation | |
| Power On & Off | Mobile App (via NFC), PC Software (via USB Type-C), Power Button (Internal) |
| Configuration | Mobile App (via NFC) or PC software (via USB Type-C) |
| Physical Characteristics | |

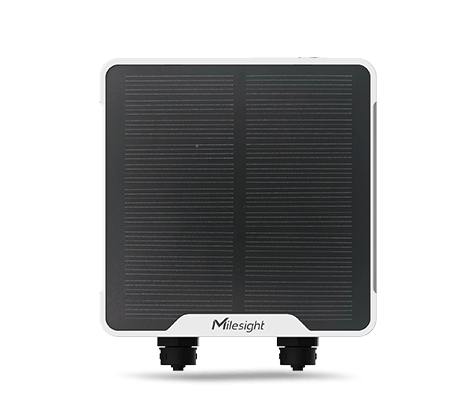

| Power Supply | UC501: 1. 2 × 2550 mAh chargeable battery 2. Solar powered (5 V, 1.6 W) 3. 5-24 VDC UC502: 1. 3 × 9000 mAh replaceable Li-SOCl battery 2. 5-24 VDC |
| Power Connector | 1 × M12 A-Coded Male Interface |
| Operating Temperature | -20°C to +60°C |
| Ingress Protection | IP67 |
| Dimension | 116 × 116 × 45.5 mm (4.56 × 4.56 × 1.79 in) |
| Installation | Wall or Pole Mounting |
