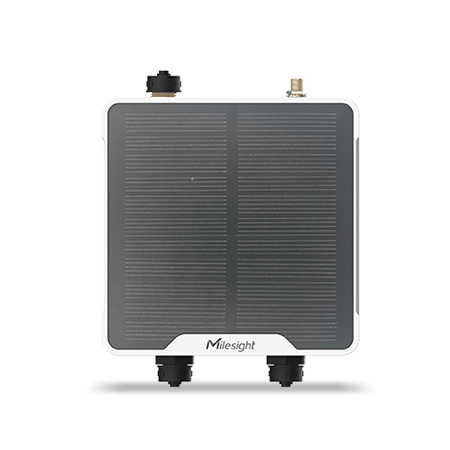

UC511-DI-915M - Solenoid Valve Controller
The UC51x Series LoRaWAN® Solenoid Valve Controller is designed for smart water flow control and monitoring. It supports autonomous operation and offers flexible power supply options. The controller is housed in an IP67 rated enclosure for harsh environments. It can be easily configured via NFC and supports multicast control for bulk configuration. The controller integrates with smart irrigation systems and enables precise irrigation based on factors like time, volume, and soil moisture.
Key points:
- UC51x Series facilitates automatic precise irrigation
- Equipped with 2 outputs for solenoid valve control
- Supports water flow monitoring with 2 digital inputs for pulse water meters
- Flexible power supply options: solar-powered or battery-powered
- IP67 rated enclosure for harsh environments
- Autonomous operation even when the network is unavailable
- Supports multicast control for bulk configuration
- NFC configuration for easy setup
- Integration with smart agriculture kits for remote monitoring and control.
Specifications
| Wireless Transmission | |
|---|---|
| Technology | LoRaWAN® |
| Frequency | CN470/IN865/EU868/RU864/US915/AU915/KR920/AS923-1&2&3&4 |
| Tx Power | 16dBm (868 MHz)/20dBm (915 MHz)/19dBm (470 MHz) |
| Sensitivity | -137dBm @300bps |
| Working Mode | UC511: OTAA/ABP Class A, Class B, Class C, Class C to B UC512: OTAA/ABP Class A, Class B |
| Data Interfaces | |

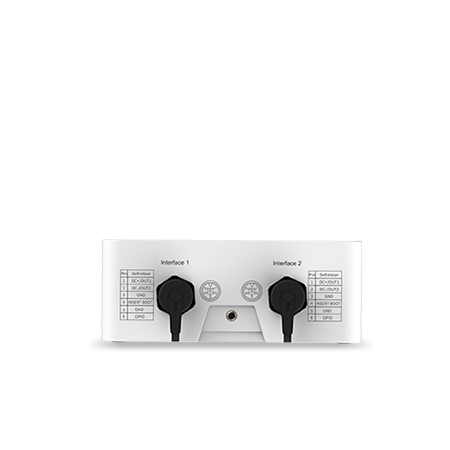

| Interface Type | M12 A-Coded Male |
| Solenoid Interface | |
| Ports | 2 × Solenoid Interfaces, 5/9/12 VDC Switchable |
| Solenoid Support | 2 Wires Latching Solenoids |
| GPIO Interface | |
| Ports | 2 × GPIO Interfaces, Dry Contact |
| Work Mode | Digital Input, Pulse Counter |
| Operation | |
| Power On & Off | Mobile App (via NFC), PC Software (via USB Type-C), Power Button (Internal), Cable Connection |
| Configuration | Mobile App(via NFC) or PC software (via USB Type-C) |
| Physical Characteristics | |
| Power Supply | UC511: Solar Powered (5V, 1.6W) + 2 × 2550 mAh Chargeable Batteries UC512: 3 × 9000 mAh Replaceable Li-SOCl Batteries |
| Operating Temperature | UC511: -20°C to +60°C UC512: -30°C to +70°C |
| Ingress Protection | IP67 |
| Dimension | 116 × 116 × 45.5 mm (4.56 × 4.56 × 1.79 in) |
| Installation | Wall or Pole Mounting |
| Approvals | |
| Regulatory | CE, FCC, RoHS |
