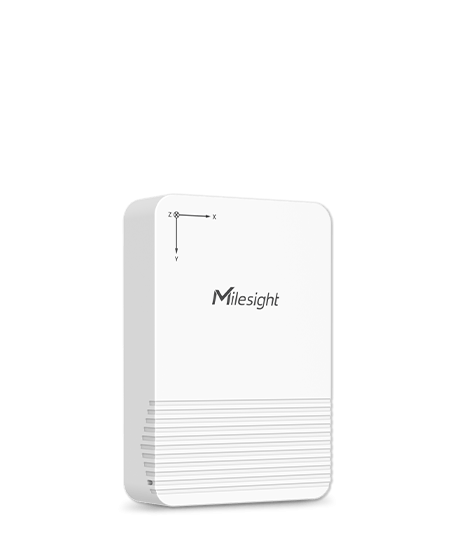

EM320-TILT-915M - Tilt Sensor
The EM320-TILT is a tilt sensor that offers high accuracy, reliability, and flexibility. It utilizes advanced MEMS Accelerometer technology to measure tilt angles in three axes (X, Y, Z) with a wide measurement range of -90° to +90° and an ultra-high resolution of 0.01°.
Key points:
- High accuracy and stability in measuring tilt angles in three axes
- Supports up to 36 customized trigger alarms based on angle inclinations, providing flexibility for various applications
- Allows for customizing the initial position to detect angle changes and send threshold alarms, enhancing user experience
- Suitable for monitoring tilt angle inclinations in applications such as tree bending, barrier gate monitoring, and cranes and construction machines monitoring
- Equipped with an IP67 rated enclosure for protection in demanding environments
- LoRaWAN® based for data transmission with a range of up to 2 km in urban areas and 15 km in rural areas
- Offers compatibility with standard LoRaWAN® gateways and network servers
- Provides cloud data management, automatic triggers, regular reports, real-time alerts, and NFC configuration for easy device management.
Specifications
| Wireless Transmission | |
|---|---|
| Technology | LoRaWAN® |
| Frequency | CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4 |
| Tx Power | 16 dBm (868 MHz)/22 dBm (915 MHz)/19 dBm (470 MHz) |
| Sensitivity | -137 dBm @300bps |
| Mode | OTAA/ABP Class A |
| Measurement | |
| Axis | X, Y, Z |
| Range | - 90° ~ +90° |
| Accuracy | ± 1° |
| Resolution | 0.01° |
| Others | |
| Power On & Off | NFC Configuration via Mobile App, Power Button (Internal) |
| Configuration | NFC Configuration via Mobile App |
| Physical Characteristics | |
| Power Supply | 2 × 2700 mAh ER14505 Li-SOCl Batteries |
| Battery Life* | ≥3 Years (10min reporting interval, SF10) |
| Operating Temperature | -30°C to +60°C |
| Relative Humidity | ≤95% (non-condensing) |
| Ingress Protection | IP67 |
| Dimension | 85 × 58 × 18 mm (3.34 × 2.28 × 0.70 in) |
| Material & Color | PC + ABS, White |

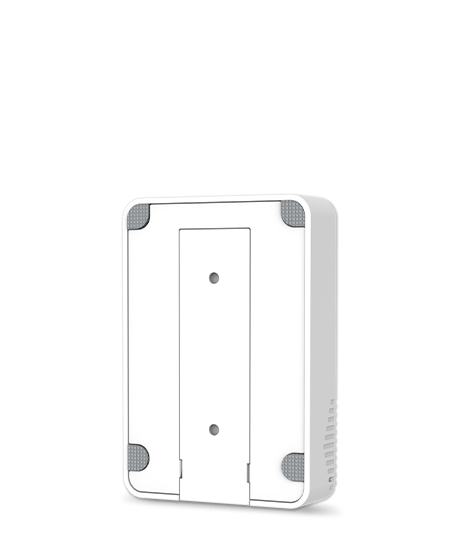

| Installation | Wall Mounting |
