EM320-TH-915M - Temperature & Humidity Sensor (PN: Magnet)
The EM320-TH is a LoRaWAN-based device for temperature and humidity monitoring. It has an esthetic and practical design with an IP67 rated enclosure for durability. It uses FDA-approved food contact materials for safety. The device has high precision sensors and a wide measuring range. It also has data storage and retransmission capabilities to avoid data loss. The EM320-TH has versatile applications and ultra-low power consumption. It is compatible with LoRaWAN gateways and network servers. Data can be managed and visualized using the Milesight IoT Cloud, and the device can be configured wirelessly using NFC.
Key Points:
- EM320-TH is a LoRaWAN-based device for temperature and humidity monitoring.
- It has an IP67 rated enclosure for durability in demanding environments.
- It uses FDA-approved food contact materials for safety.
- The device has high precision sensors with a wide measuring range.
- It has data storage and retransmission capabilities to avoid data loss.
- The EM320-TH has versatile applications and ultra-low power consumption.
- It is compatible with LoRaWAN gateways and network servers.
- Data can be managed and visualized using the Milesight IoT Cloud.
- The device can be configured wirelessly using NFC.
Specifications
| Wireless Transmission | |
|---|---|
| Technology | LoRaWAN® |
| Frequency | CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4 |
| Tx Power | 16dBm (868)/20dBm(915)/19dBm(470) |
| Sensitivity | -137dBm @300bps |
| Mode | OTAA/ABP Class A |
| Measurement | |
| Temperature | |
| Range | -30°C to + 60°C |
| Accuracy | +/- 0.2°C |
| Resolution | 0.1°C |
| Humidity | |
| Range | 0% to 100% RH |
| Accuracy | +/- 2% |
| Resolution | 0.5% RH |
| Operation | |
| Power On & Off | NFC Configuration via Mobile App, Power Button (Internal) |
| Configuration | NFC Configuration via Mobile App |
| Physical Characteristics | |
| Power Supply | 2 × 2700 mAh ER14505 Li-SOCL2 Batteries |
| Battery Life* | ≥5 years (10 min interval with data retransmission disabled) |
| Operating Temperature | -30°C to +60°C |
| Relative Humidity | ≤95% |
| Material | PC + ABS (Food-Grade) |
| Color | White |
| Ingress Protection | IP67 |
| Dimension | 85 × 58 × 18 mm (3.34 × 2.28 × 0.70 in) |

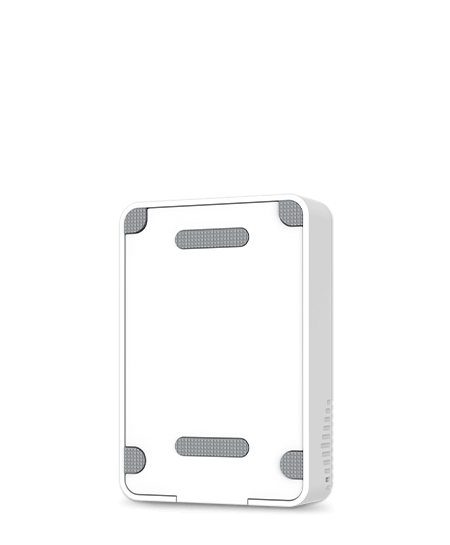

| Installation | Standard Version: Wall Mounting Magnet Version: Magnetic Adsorption |
