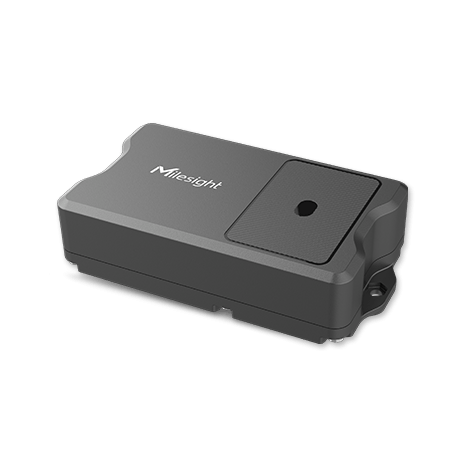

EM400-TLD-915M - ToF Laser Distance Sensor
The EM400-TLD is a highly specialized product among the EM400 Series, designed for small and mini trash bins. It has a range of powerful features including the ability to detect overflowing garbage, the status of the garbage bin lid, and trash combustion.
Key points:
- The EM400-TLD is ideal for smart waste management and provides long-lasting performance.
- It is available in LoRaWAN and NB-IoT versions, allowing for a variety of application scenarios.
- The device uses time-of-flight (ToF) technology to detect and measure the distance of objects, ensuring high accuracy and almost no blind spots.
- It is equipped with two pre-set modes: Standard mode and Bin mode, which can be configured for different data collection intervals.
- The EM400-TLD has an IP67 rated enclosure, making it rugged and reliable in harsh environments. It also has an ultra-long battery life of up to 10 years.
- Note: The specifications provided include wireless transmission, measurement capabilities, power supply, battery life, operating temperature, and other physical characteristics.
Specifications
| Wireless Transmission | |
|---|---|
| LoRaWAN® Version | |
| Frequency | CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4 |
| Tx Power | 16 dBm (868 MHz)/20 dBm (915MHz)/19 dBm (470MHz) |
| Sensitivity | -137dBm @300bps |
| Mode | OTAA/ABP Class A |
| NB-IoT/Cat M Version | |
| Cellular Band | Cat M1: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B27/B28/B66/B85 Cat NB2: B1/B2/B3/B4/B5/B8/ B12/B13/B18/B19/B20/B25/B28/B66/B71/B85 |
| SIM Slot | 1 (Micro SIM-3FF) |
| Application Mode | TCP/UDP/MQTT/AWS/Milesight IoT Cloud |
| Measurement | |
| Distance | |
| ToF FoV | 27° |
| Detection Range | 2 ~ 350 cm |
| Detection Accuracy | ±2 cm |
| Detection Resolution | 1 mm |
| Device Position | |
| Status | Normal/Tilt |
| Temperature | |
| Range | -40 ~ 125°C |
| Resolution | 0.1°C |
| GNSS Positioning (NB-IoT/Cat M Version Only) | |
| Parameters | Longitude/Latitude |
| Resolution | 0.000001 |
| Operation | |
| Power On & Off | NFC, Power Button (Internal) |
| Configuration | Mobile App (via NFC) |
| Physical Characteristics | |
| Power Supply | 2 x 9000 mAh ER26500 Li-SOCL Batteries |
| Battery Life | LoRaWAN® Version: Standard mode: Around 10 years (10 min interval, 25°C) Bin mode: Around 10 years (20 min interval, 25°C) NB-IoT/Cat.M Version: TCP/UDP—Around 10 Years, MQTT/AWS—Around 5 Years (4 Times Report per Day, per Report Includes 12 Packages with 30-min Collection Interval, 25°C) |
| Operating Temperature | - 30°C ~ 70°C |
| Relative Humidity | ≤95% (non-condensing) |
| Ingress Protection | IP67 |
| Dimension | 118 × 65 × 30 mm |
| Material & Color | ABS + PC (Flame Retardant), Black gray |
| Installation | On the Flat Surfaces with Screws |
Milesight IoT Cloud mode is under development.
Tested under laboratory conditions and for guideline purposes only.
PSM is required for SIM card and will be impacted by cellular base station signals.
