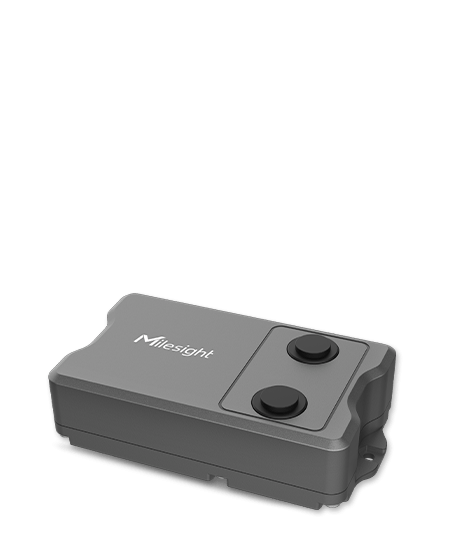

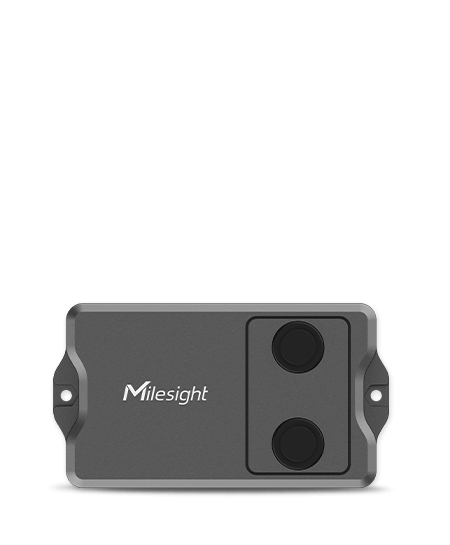

EM400-MUD-915M - Multifunctional Ultrasonic Distance/Level Sensor (PN: B045-2)
The EM400-MUD is a versatile device in the EM400 series that is equipped with multiple application modes for smart waste management, smart parking, and distance/level measurement.
Key points:
- The EM400-MUD is a powerful solution for various applications, with extended battery life and a robust build.
- It offers three pre-set modes: Standard Mode, Bin Mode, and Parking Lot Mode, which can be configured for different data collection and report intervals.
- The device is IP67 rated for protection against dust and water, allowing it to withstand harsh environments.
- It has an ultra-long battery life of up to 10 years, depending on the mode and conditions.
- The EM400-MUD supports cloud data management, including data visualization, automatic triggers, regular reports, real-time alerts, and device management through an Android & iOS app.
- It can be configured wirelessly using NFC technology.
- The device is available in LoRaWAN and NB-IoT/CAT M versions, with different frequency options and wireless transmission capabilities.
- It also features distance detection using ultrasonic technology and GNSS positioning in the NB-IoT/CAT M version.
Note: The provided specifications are for reference purposes only and may vary depending on specific conditions.
Specifications
| Wireless Transmission | |
|---|---|
| LoRaWAN® Version | |
| Frequency | CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4 |
| Tx Power | 16 dBm (868 MHz)/20 dBm (915MHz)/19 dBm (470MHz) |
| Sensitivity | -137dBm @300bps |
| Mode | OTAA/ABP Class A |
| NB-IoT/Cat M Version | |
| Cellular Band | Cat M1: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B27/B28/B66/B85 Cat NB2: B1/B2/B3/B4/B5/B8/ B12/B13/B18/B19/B20/B25/B28/ B66/B71/B85 |
| SIM Slot | 1 (Micro SIM-3FF) |
| Application Mode | TCP/UDP/MQTT/AWS/Milesight IoT Cloud |
| Measurement | |
| Distance | |
| Detection Range | 3 ~ 450 cm |
| Detection Accuracy | ± (1+0.3%*S) cm, S=distance(-15°C ~ 60°C) |
| Detection Resolution | 1 mm |
| Device Position | |
| Status | Normal/Tilt |
| Temperature | |
| Range | -40 ~ 125°C |
| Resolution | 0.1°C |
| GNSS Positioning (NB-IoT/Cat M Version Only) | |
| Parameters | Longitude/Latitude |
| Resolution | 0.000001 |
| Operation | |
| Power On & Off | NFC, Power Button (Internal) |
| Configuration | Mobile App (via NFC) |
| Physical Characteristics | |
| Power Supply | 2 x 9000 mAh ER26500 Li-SOCL Batteries |
| Battery Life | LoRaWAN® Version: Standard mode: > 10 years (10 min interval, 25°C) Bin mode: > 10 years (20 min interval, 25°C) Parking lot mode: 5 years (12 triggers per day, 25°C) NB-IoT/Cat.M Version: TCP/UDP—Around 10 Years, MQTT/AWS—Around 5 Years (4 Times Report per Day, per Report Includes 12 Packages with 30-min Collection Interval, 25°C) |
| Operating Temperature | - 30°C ~ 70°C |
| Relative Humidity | ≤95% (non-condensing) |
| Ingress Protection | IP67 |
| Dimension | 118 × 65 × 32.5 mm |
| Material & Color | ABS + PC (Flame Retardant), Black gray |
| Installation | On the Flat Surfaces with Screws |
Milesight IoT Cloud mode is under development.
Tested under laboratory conditions and for guideline purposes only.
PSM is required for SIM card and will be impacted by cellular base station signals.
