Name: Smart Button - WS101-915M
Price: 56 USD
Availability: InStock

About this product

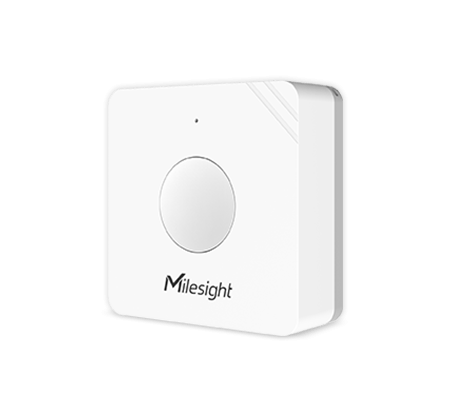

The WS101 is a LoRaWAN® smart button that allows for versatile and customizable interactions.
It can be easily installed and moved as needed, providing convenience and accessibility.

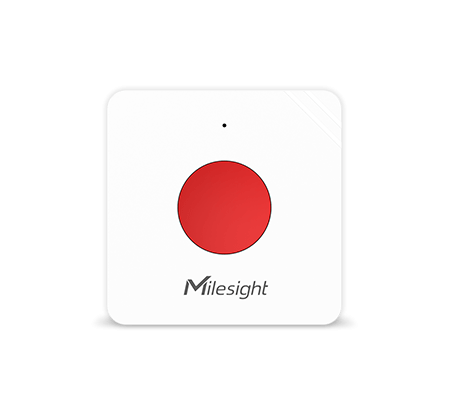

The WS101 features panic button functionality for contacting caregivers in case of emergencies.
It uses LoRaWAN® technology for long-range and low-power communication.
The button has a battery life of over 5 years and can be configured using NFC technology.

Specifications

Wireless Transmission
Technology	LoRaWAN®, Milesight D2D
Frequency	CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4
Tx Power	16 dBm (868 MHz)/22 dBm (915 MHz)/19 dBm (470 MHz)
Sensitivity	-137 dBm @300bps
Mode	OTAA/ABP Class A
Interface
Button	1 × External Button + 1 × Reset Button (Internal)
LED Indicator	1
Buzzer	Support
Software
Configuration	NFC Configuration via Mobile App
Advanced Feature	Milesight D2D Controller
Physical Characteristics
Power Supply	1 × 1650 mAh ER14335 Li-SOCl battery
Battery Life*	Over 5 years (1080 min interval + 10 presses per day)
Operating Temperature	-20°C to +60°C
Relative Humidity	≤90% (non-condensing)
Ingress Protection	IP30
Dimension	50 × 50 × 18 mm (1.97 × 1.97 × 0.71 in) Button: Φ20 mm (Φ0.79 in)
Material	Anti-flaming Polycarbonate
Color	White (Button: White/Red Optional)
Installation	On the flat surfaces with screws or 3M tapes, Lanyard
Approvals
Regulatory	CE, FCC, RoHS

Specifications

Connectivity
Battery	1650 mAh Li-SOCL2
Battery Life	Over 5 Years (1080 min Interval + 10 Presses per Day)
Advanced Features	Milesight D2D Controller
NFC Enabled	Yes
IP Rating	IP30 Rated
Communication	LoRaWAN
Interface
Button:	1 * External Button + 1 * Reset Button (Internal)
Buzzer:	Support
