WTS305-915M - IoT Weather Station
The Milesight IoT Weather Station is an all-in-one LoRaWAN® weather monitoring system that provides accurate and reliable continuous monitoring of various atmospheric conditions.
Key points:
- The weather station includes sensors for temperature, humidity, wind speed, wind direction, barometric pressure, and rainfall (in the WTS506 model).
- It is designed for various application scenarios such as agriculture, meteorology, forestry, and smart buildings.

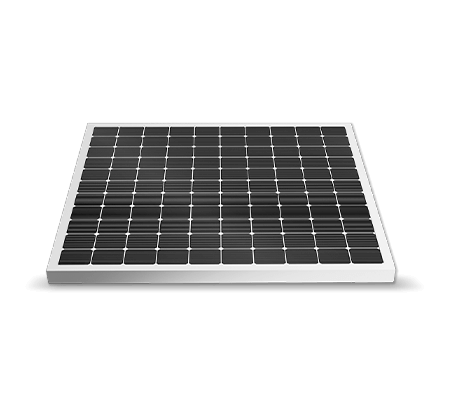

- The weather station is solar-powered with chargeable batteries for backup, allowing it to operate for up to seven days without sunlight.

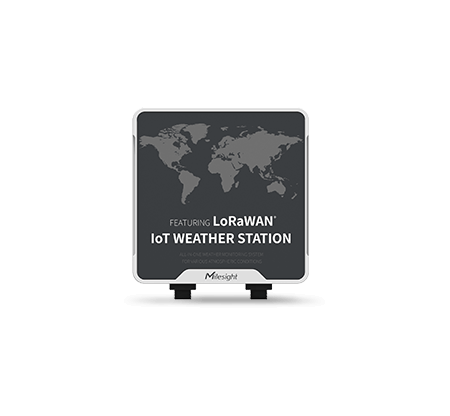

- It is built to be robust and rugged, with an IP65 rating for the sensors and IP67 rating for the hub, making it suitable for harsh environments.
- The weather station uses LoRaWAN® technology for data transmission, with a range of up to 2 km in urban areas and 15 km in rural areas.
Specifications
| Temperature | |
|---|---|
| Operating Principle | Thermistor |
| Range | -40°C – 85°C |
| Accuracy | ± 0.3°C |
| Resolution | 0.1°C |
| Humidity | |
| Operating Principle | Capacitive humidity sensor |
| Range | 0% – 100% RH |
| Accuracy | ± 5% RH |
| Resolution | 0.5% RH |
| Wind Direction | |
| Operating Principle | Ultrasonic |
| Range | 0° – 360° |
| Accuracy | ± 3° |
| Resolution | 1° |
| Wind Speed | |
| Operating Principle | Ultrasonic |
| Range | 0 -60 m/s |
| Accuracy | ± (0.5 + 0.02 V) m/s, V=Speed |
| Resolution | 0.1 m/s |
| Barometric Pressure | |
| Operating Principle | Piezoresistive absolute pressure sensor |
| Range | 500 – 1100 hPa |
| Accuracy | ±1 hPa |
| Resolution | 0.1 hPa |
| Rainfall (WTS506 Only) | |
| Operating Principle | - |
| Range | - |
| Accuracy | - |
| Resolution | - |
| Physical Characteristics | |
| Material | ABS |
| Weight | 1 kg |
| Dimension | ф140 x 248 x ф50 mm |
| Operating Temperature | -40°C ~ 60°C |
| Relative Humidity | 0% – 100% (non-condensing) |
| Ingress Protection | IP65 |
| Installation | Pole Mounting |
