GS101-915M - Residential Gas Detector
The Milesight GS101 LoRaWAN Gas Detector is a residential gas detector that detects methane (CH4) leakage in houses, apartments, hotels, etc. It features a gas alarm threshold of 8% LEL and can send notifications remotely via LoRaWAN when gas leakage is detected. The gas detector has a built-in self-test function and can store up to 800 records of historical data. It has a life expectancy of up to 5 years and is based on LoRaWAN technology.
Key points:
- The GS101 gas detector detects methane (CH4) leakage in residential areas.
- It has a gas alarm threshold of 8% LEL and can send remote notifications via LoRaWAN.
- The gas detector has a built-in self-test function and can store up to 800 records of historical data.
- It has a life expectancy of up to 5 years and is based on LoRaWAN technology.
Specifications
| Wireless Transmission | |
|---|---|
| Technology | LoRaWAN® |
| Frequency | CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4 |
| Tx Power | 16 dBm (868 MHz)/22 dBm (915 MHz)/19 dBm (470 MHz) |
| Sensitivity | -137dBm @300bps |
| Mode | OTAA/ABP Class C |
| Measurement and Alarms | |
| Detecting Gas | Methane (CH4) |
| Detection Principle | Semiconductor Sensor |
| Warm-up Time | About 180s |
| Alarm Level | 8% LEL |
| Alarm Type | Sound, Light |
| Alarm Volume | 85 dBA @1 Meter |
| Working Life | 5 Years (In Clear Air) |
| Others | |

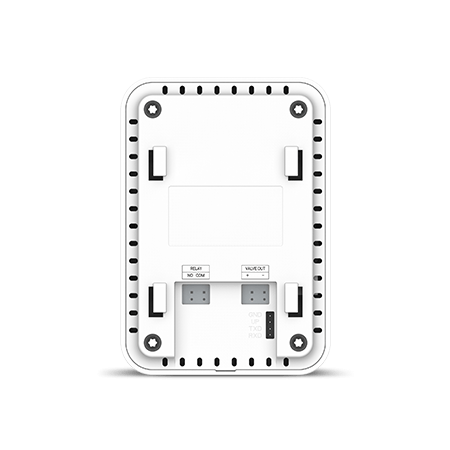

| Output Signal | 1 × Relay Output: normally open, max 250 VAC/10A, 1 × Solenoid Valve Output: 12V, 100ms Pulse Output |
| Button | 1 × Test/Mute/Reset/Reboot Button |

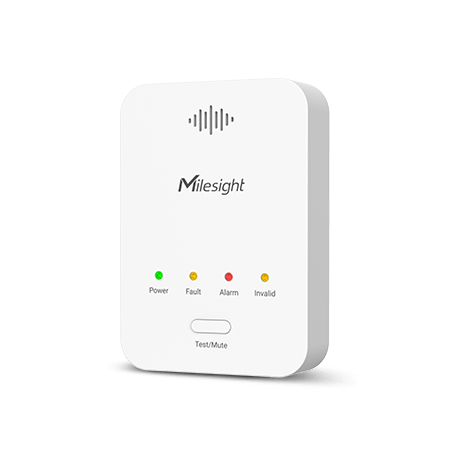

| LED Indicators | 1 × Power (Green), 1 × Fault (Yellow), 1 × Alarm (Red), 1 × Invalid (Yellow) |
| Configuration | Mobile App via NFC |
| Historical Records Storage | Alarm Records, Alarm Dismissed Records, Device Fault Records, Device Fault Recovered Records, Device Power On Records, Device Power Off Records, Device Invalid Records |
| Physical Characteristics | |
| Power Connector | DC Jack Connector |
| Power Supply | 12VDC, 1A |
| Operating Temperature | -10°C to +55°C |
| Relative Humidity | 0% to 95% (non-condensing) |
| Ingress Protection | IP30 |
| Dimension | 120 × 85 × 32.5 mm (4.72 × 3.35 × 1.28 in) |
| Material & Color | PC+ABS (Flame Retardant), White |
| Installation | Wall Mounting |
