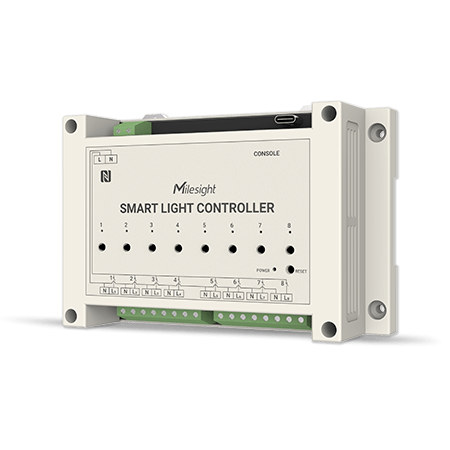

WS558-915M - Smart Light Controller (PN: Switch)
The Smart Light Controller is a device that allows users to control their lights using a mobile app or voice commands. It offers features like dimming, color changing, and scheduling.
Key points:
- The Smart Light Controller enables users to control their lights remotely using a mobile app or voice commands.
- It offers various features such as dimming the lights, changing colors, and scheduling lighting patterns.
- The device can be integrated with smart home systems like Amazon Alexa or Google Assistant for voice control.
- Users can create customized lighting settings and scenes to suit their preferences and needs.
- The Smart Light Controller provides convenience, flexibility, and energy efficiency in managing home lighting.
Specifications
| Electrical | |
|---|---|
| Circuit Type | Switch Type |
| Input Voltage | 100~250 VAC, 50~60 Hz |
| Output | 8 Passive Switches |
| Capacitive & Inductive Load | Maximum 5A per switch |
| Resistive Load | Maximum 10A per switch |
| Electrical Measurement | ----- |
| Wireless Transmission | |
| Protocol | LoRaWAN®, Milesight D2D |
| Frequency | CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4 |
| Tx Power | 16 dBm (868 MHz)/22 dBm (915 MHz)/19 dBm (470 MHz) |
| Sensitivity | -137dBm |
| Mode | OTAA/ABP Class C |
| Software | |
| Configuration | NFC, USB Type-C or Downlink |
| Switch Control | Local Press or Remote Control |
| Advanced Features | Multicast, Remote Schedule Switch, Overcurrent Protection, Milesight D2D Agent |
| Physical Characteristics | |
| Color/ Material | Creamy-white, ABS |
| Operating Temperature | -20°C to +60°C (-4℉ to +140℉) |
| Relative Humidity | ≤ 95% (Non-condensing) |
| Dimensions | 145 × 90 × 40 mm (5.7 × 3.54 × 1.57 in) |

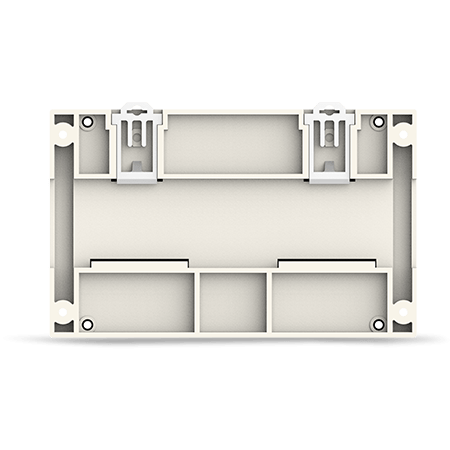

| Installation | Wall Mounting, DIN Rail Mounting |
